Acimut Monitoriza Features

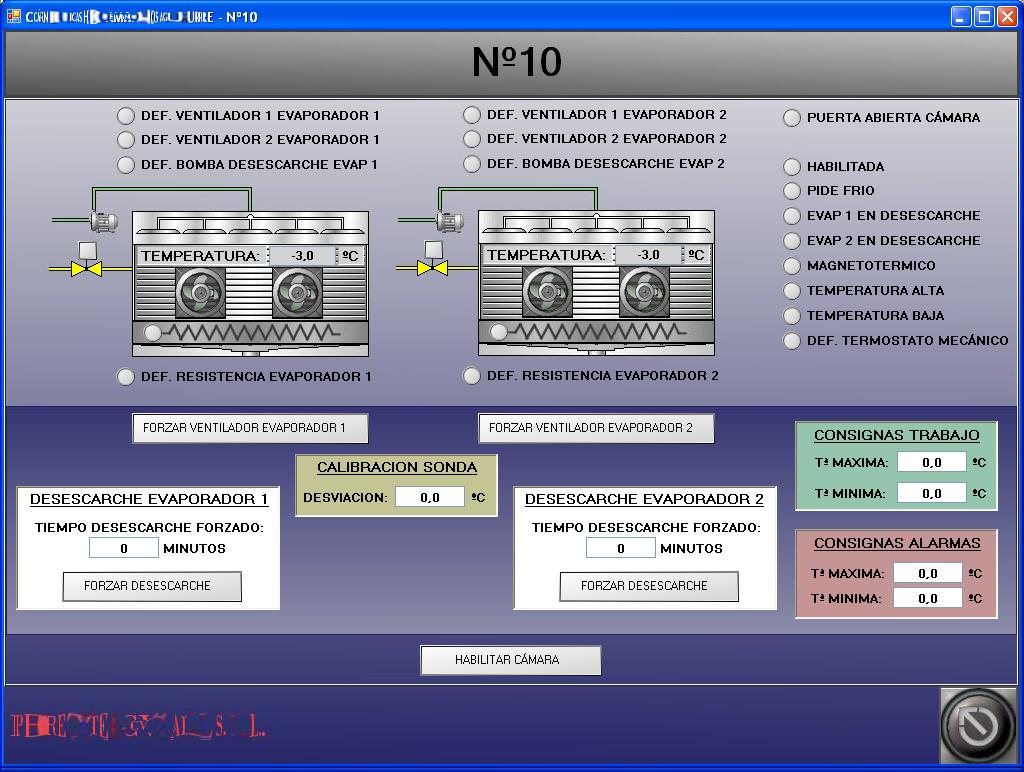

Ejemplo de pantalla

Easy data-forms configuration

The most modern and economical SCADA of the market. A Acimut complete development, and implemented in many companies.

Price: from 299 €

The new version 3.2 introduces the "CodeBinding" technology for better development and project extensibility

Acimut Scada Monitoriza is compatible with Windows 7 with support for 32 and 64 bits. Click here
The new generation and low cost SCADA to suit all environments.

A SCADA (Supervisory Control and Data Acquisition) that allows the collection of information from a process or plant. These data can be studied and evaluated, obtaining values that can be represented or influence others operators or the process itself.

Operation distributed on servers (Monitoriza, communications server, database server, clients, etc.) and PC's located on different networks or through the Internet, give it a unusual installation versatility.

Another important characteristic of Acimut Monitoriza is its scalability, it can run on a single PC in mode standalone and then gradually increase clients, and can start a project with few variables and increases its complexity be increasing the number of variables
Request Information!
  • Simple and immediate installation of the product.
  • Easy setup, even if it is an installation with remote computers (WAN). Since communications between the client and the server are based on Internet standards (HTTP protocol).
  • Includes native ModBUS communications, Ethernet S7 for S7-300 and OPC connectivity.
  • No programming required to create fully functional projects, simply "drag and drop" SCADA objects on the surface of the forms and set the corresponding properties for a working solution.
  • If you require advanced functionality not covered in the SCADA objects defined in Acimut Monitoriza, no problem since Acimut Monitoriza is extensible programmatically in C# or VB.NET. It is also possible to use third-party libraries developed for. NET Framework for Windows.
  • The creation of the graphical user interface is based on Microsoft© technology Windows Forms Designer which greatly facilitates the design.
  • At the project level we can define users and the permissions assigned to each of them. For example if the user have Read-Only permissions in a form or if you have full access.
  • Easy definition of alarms.
  • Effective monitoring of operations.
  • Increased information about their systems or processes.
  • Easy tracking of variables.
  • Information in accessible formats. Acimut Monitoriza can store variables that are monitored in standard databases of the market (Microsoft© SQL Server™, Microsoft© Access™, Oracle®, etc.).
  • ROI immediately.
  • Definition of recipes using templates, user control to use recipes.
  • Batch functions for loading recipes per event.
  • Monitoriza Server provides the variables defined by OPC services, so that external applications can connect to Monitoriza and access variables for other use. (This service is only available in the Professional version and higher of Acimut Monitoriza).
